Recipient Type Management

You can check the recipient types provided by mKC or create and manage your own recipient types.

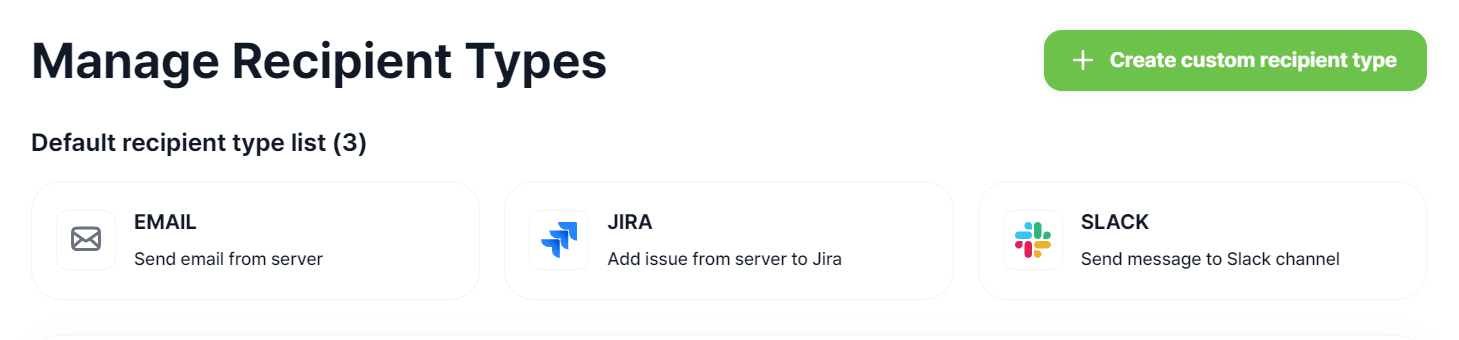

Default Recipient Type List

Default Recipient Type Details

View the default recipient types provided by mKC. First, select a default recipient type and move to the details page.

On the details page, you can see information about the recipient type, and whether the tags or HTTP headers customization can be used when creating targets.

Since default recipient types are provided by mKC, you cannot delete them.

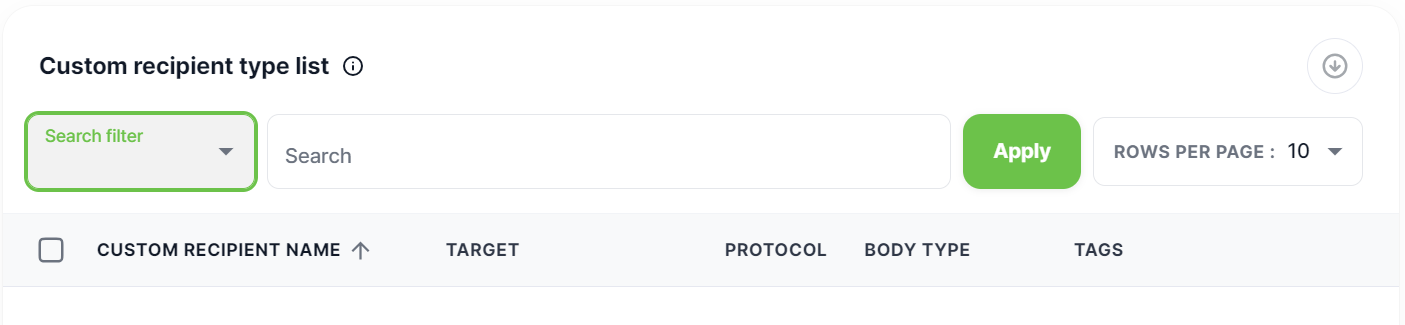

Custom Recipient Type List

In the Manage Recipient Types page, you can view the list of custom recipient types created by users. Click on the [Recipient Type Name] in the list to move to the custom recipient type modification page.

Custom Recipient Type Search Filters

When searching by tag and field name, if a specific recipient type's tag or field name is "DataPlatformTeam," you must enter exactly "DataPlatformTeam" to find the desired custom recipient type.

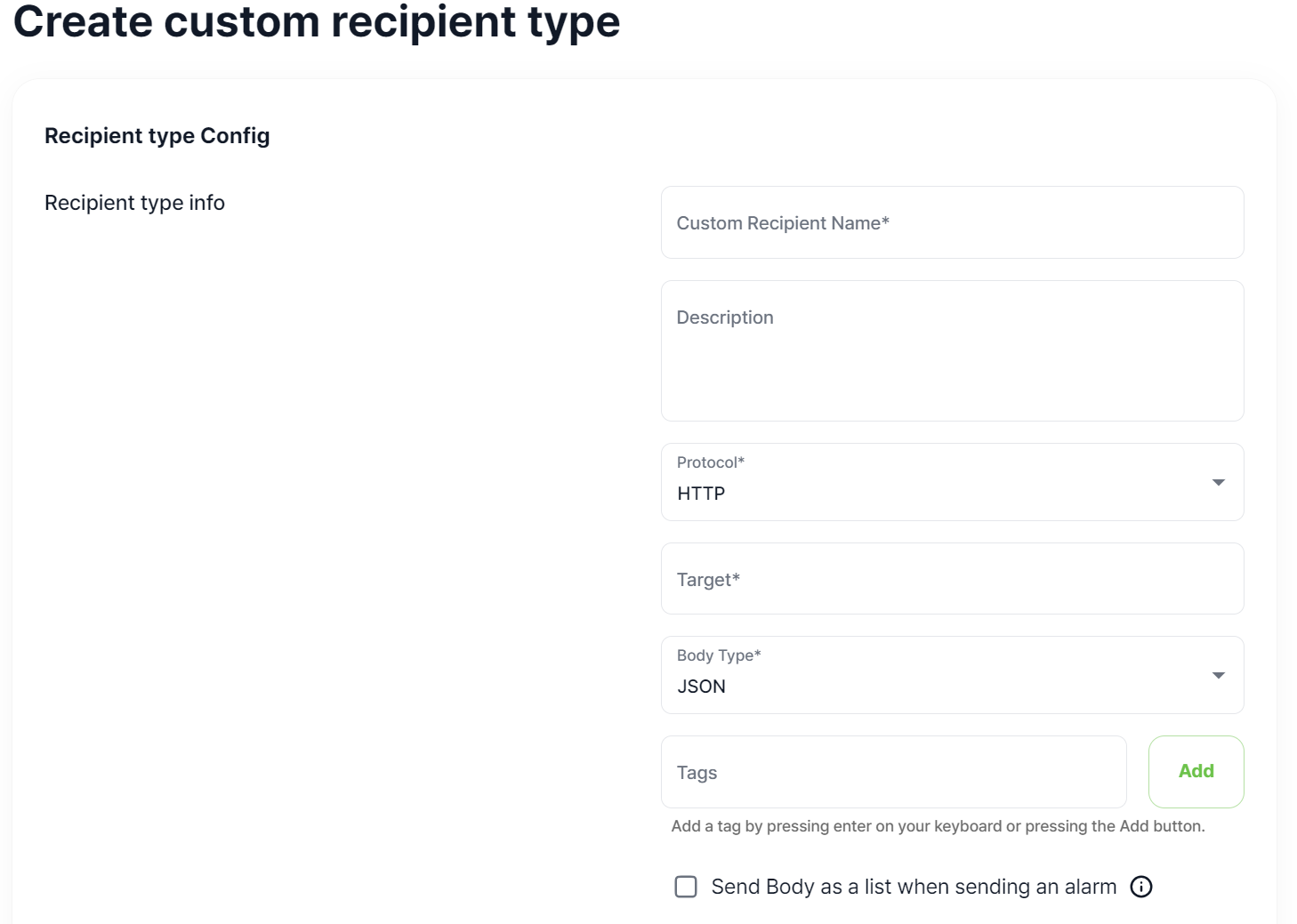

Creating Custom Recipient Type

First, click on [Create custom recipient type] button on the Manage Recipient Types page, to access the Create custom recipient type page.

Recipient Type Config

Enter the information for the custom recipient type you want to create.

Recipient Type Basic Input Information

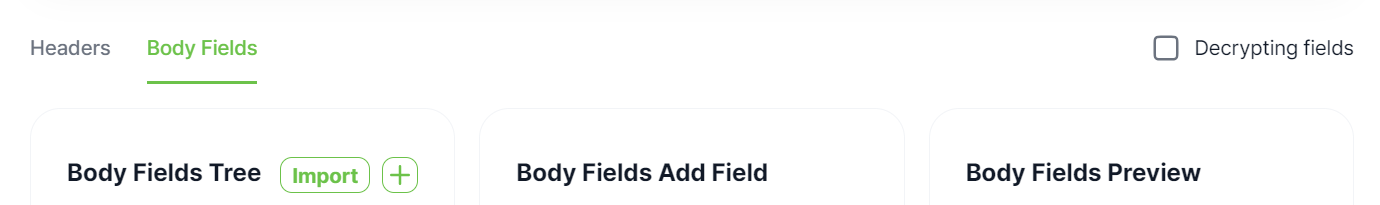

Custom Fields

You can customize the header and body fields to be sent with the custom recipient type.

Decryption

To decrypt an encrypted field, check the "Decrypting fields" checkbox. Note that this checkbox is only visible to System Admin users under RBAC.

Adding Custom Fields

First, click on the [Plus] button located at the top right of the Fields Tree.

Enter the information of the header and body fields you want to send to the recipient channel.

Field Input Information

Field Type

⓵ String ⓶ Number ⓷ Object ⓸ List< String > ⓹ LIST< Number > ⓺ LIST< Object >

The field type cannot be changed once the field is created. If you want to change the field type, you need to delete and recreate the field so please beware.

How to Use the Parent Field
How to Use Object Field

For example, let's create a custom field with the following Object.

{
  "mKC": {
    "name": "mKC"
  }
}

1. Create an Object type field with the field name, mKC.
2. Create a String type field with the field name, name, and select mKC as the parent field, and create it.

How to Use List< Object > Field

For example, let's create a custom field with the following List< Object >.

{
  "mKC": [
    {
      "name": "mKC"
    }
  ]
}

1. Create a List< Object > type field with the field name, mKC.
2. Create an Object type field with the desired field name.
3. Create a String type field with the field name, name, and select [mKC > Field Name from ⓶] as the parent field, and create it.

List< String >, List< Number > Fields
Unlike List< Object >, if you want to create a field as List< String > or List< Number > type, you need to enter values directly like [1,2,3], ['mKC', 'kafka'] in the Value.

How to Edit a Field

1. Select the field you want to edit in the Fields Tree.
2. In the Fields Edit section for the selected field, enter the values to change, and click on the [Edit] button at the bottom of the Fields Edit section.
3. Repeat step two until you are done editing all the fields you want.

Adding Fields Using JSON Import

Click Import located to the right of the Fields Tree, to import a JSON file through a modal and add multiple fields at once.
Note that if the JSON contains Object or List< Object > types, they cannot be imported from the header and can only be imported from the body.

If you have entered all the basic settings for the recipient type and custom fields, click Create to create the custom recipient type.

Adding Predefined Values to Field Values

Predefined values are values defined in advance that will be replaced in the alarm message content. If predefined values are used, each of them will be replaced when the alarm is sent. For more details on predefined values, refer to the Predefined Values document.

✨ Now, you can create targets with the custom recipient type you created!

Deleting Custom Recipient Type

You can delete a custom recipient type that you no longer use. When you delete it, targets created with that custom recipient type are also deleted, and those targets are removed from any alarm rules they were registered in as well. Either select the ones you want to delete and click on Delete # custom recipient type(s) button, or click on the [Trash Can Icon] button that appears on the right of each row when you hover your mouse over the list, to delete the selected custom recipient type.
